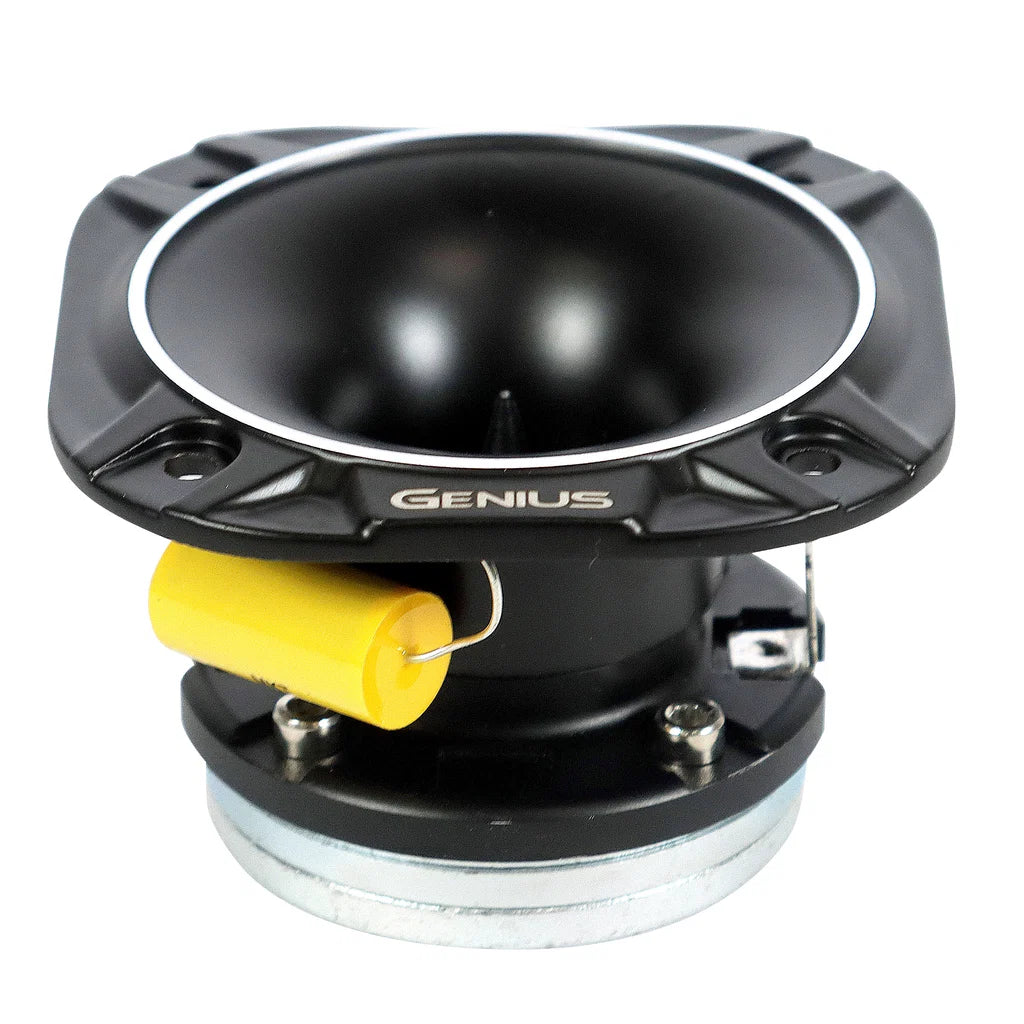

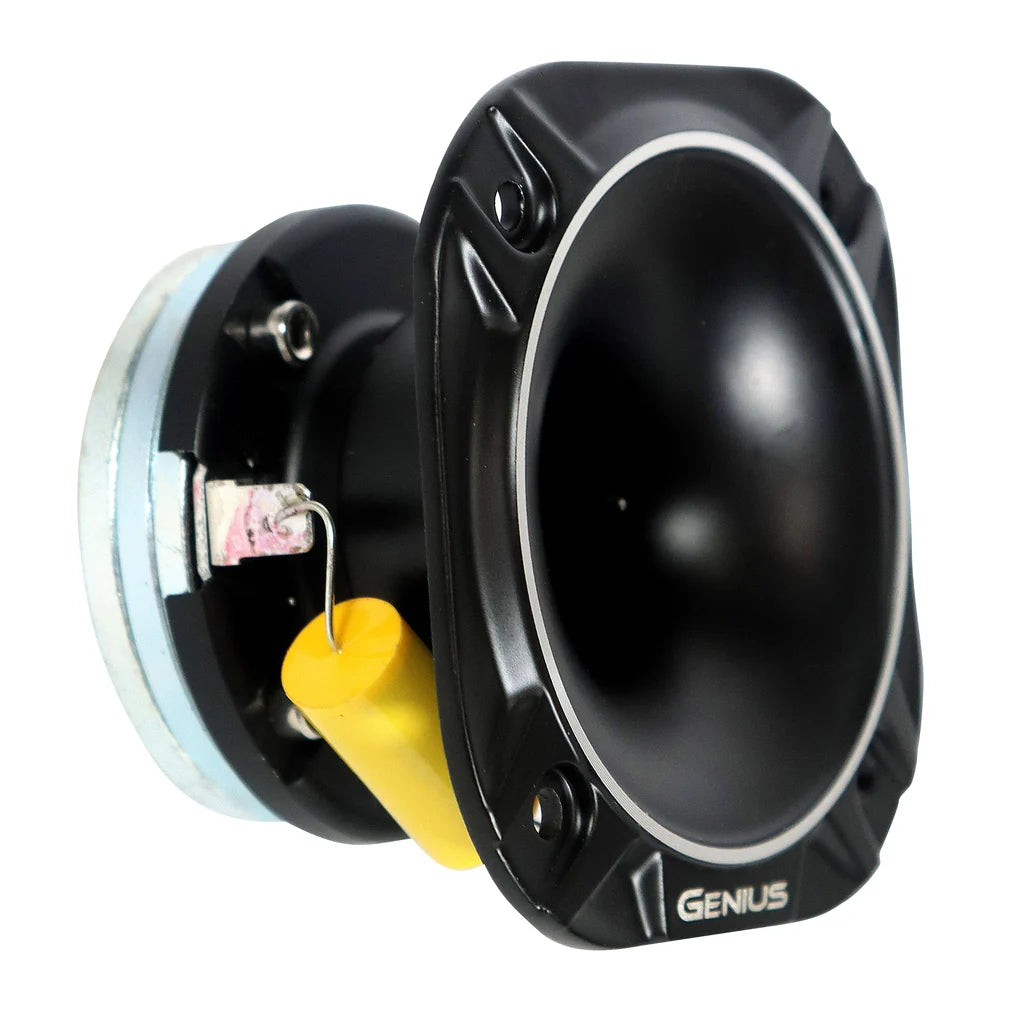

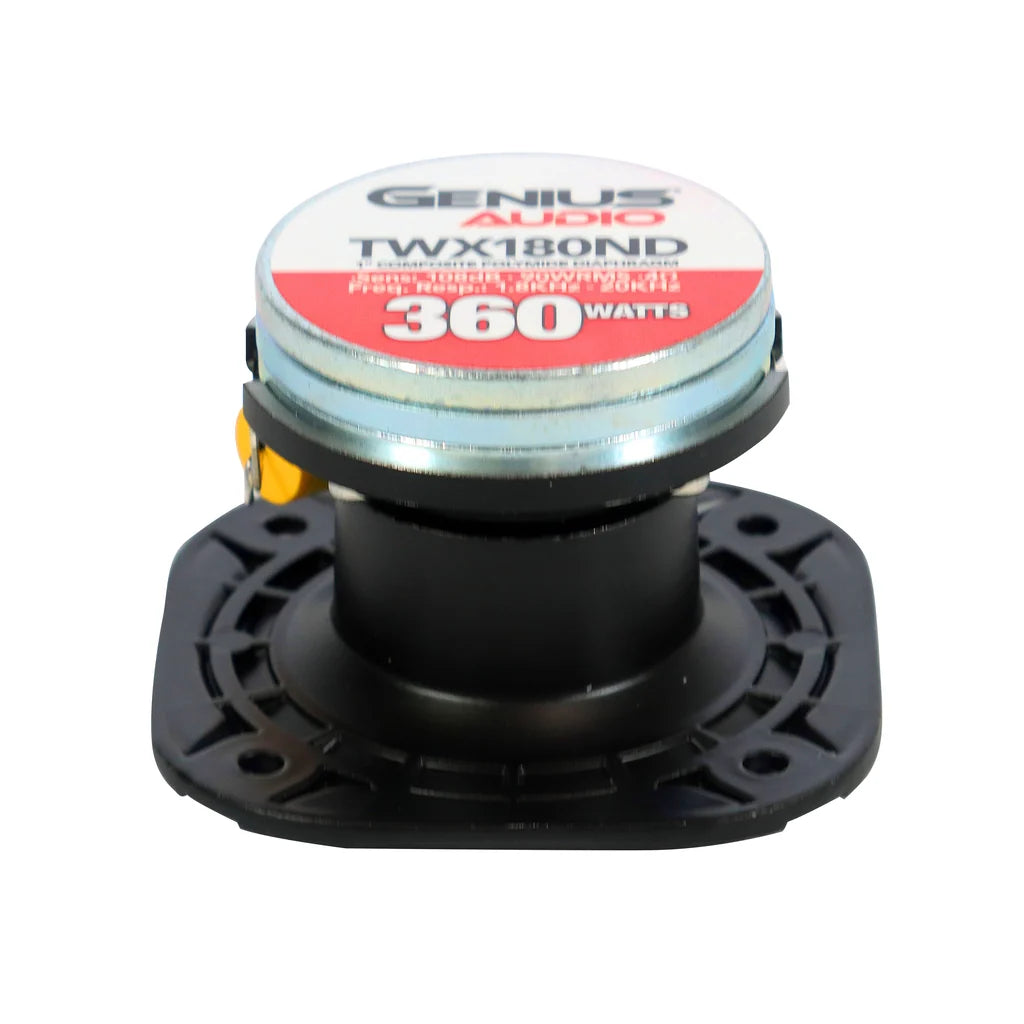

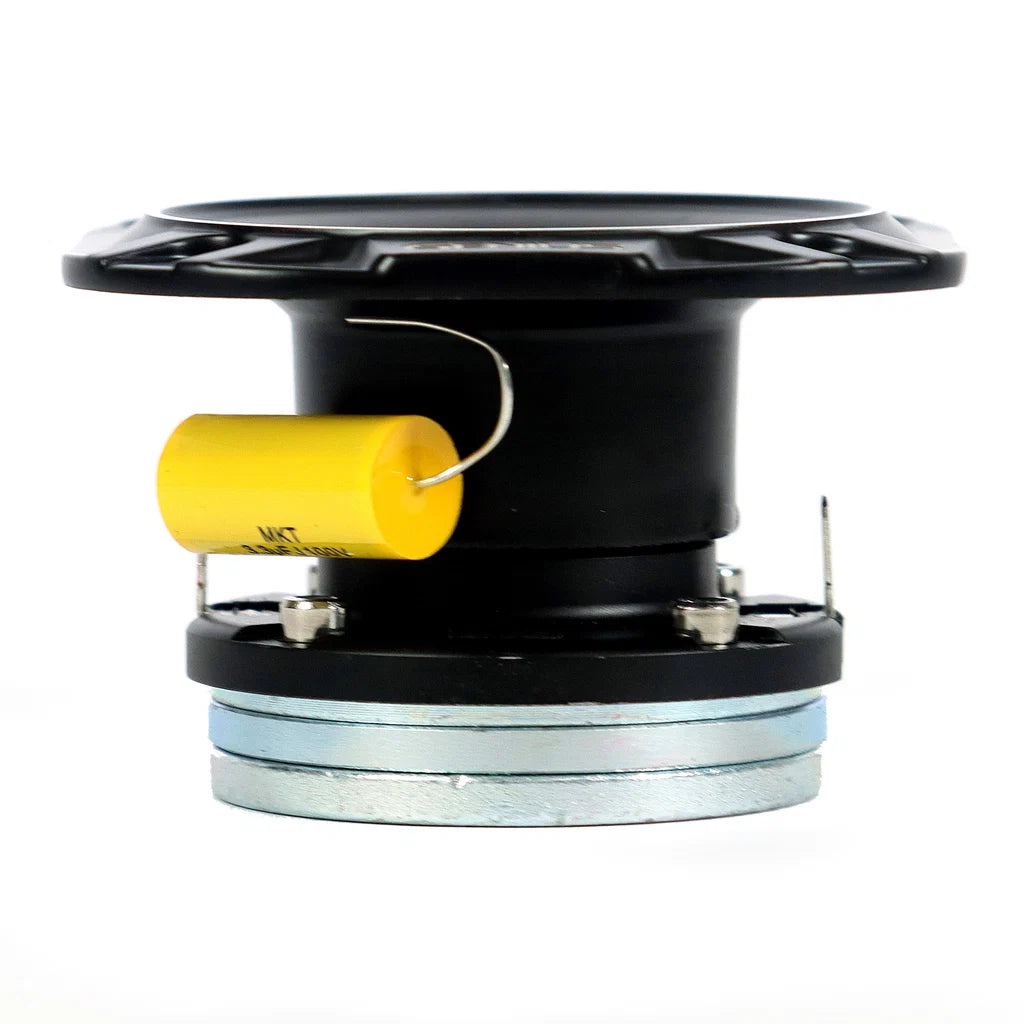

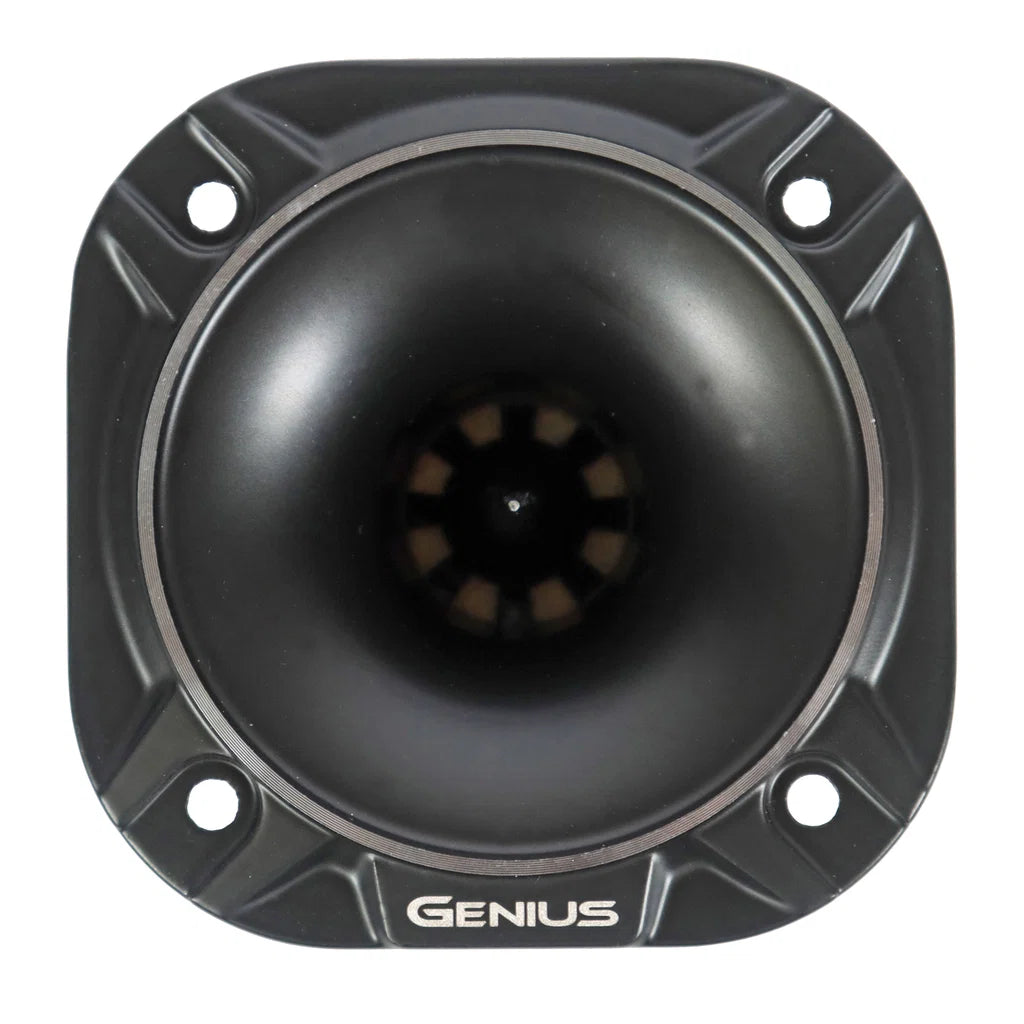

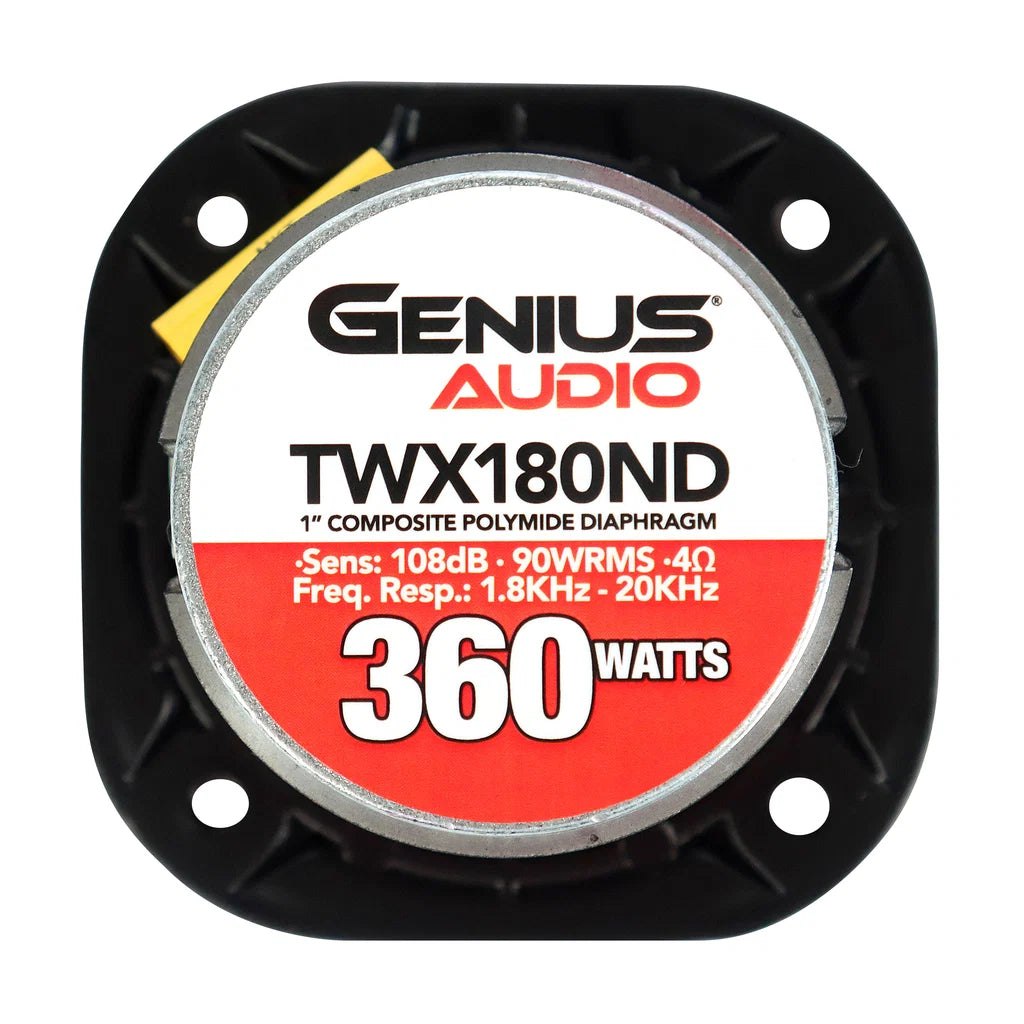

TWX180ND 3" SUPER TWEETER NEODYMIUM
$45.99 USD
$45.99 USD
Sale
Sold out
Buy More Save More!
Unlock Exclusive Savings with Our Buy More, Save More Deals!
Re-stocking soon
Couldn't load pickup availability
- Best Price Guarantee
- Deals
- Professional Support
- Fast Shipping
Secure checkout with
About the Product
Product Description
The Genius Audio TWX180ND is a professional 3-inch high-compression neodymium super tweeter designed for high-output car audio systems. It features a 1-inch voice coil, a lightweight composite polyimide diaphragm, and an N42 neodymium magnet for strong high-frequency output with reduced weight.
With 90 watts AES power handling, 180 watts program power, and up to 360 watts peak power, the TWX180ND delivers high efficiency with a rated 108 dB sensitivity. Its frequency response extends from 1.8 kHz to 20 kHz, making it well suited for loud, detailed high-frequency reproduction in multi-speaker and competition-style audio systems.
Main Features
| Feature | Specification |
|---|---|
| Product Type | Professional Super Tweeter |
| Model | Genius Audio TWX180ND |
| Nominal Size | 3 in |
| Nominal Impedance | 4 Ohms |
| Voice Coil Diameter | 1 in / 25.4 mm |
| Voice Coil Wire | CCAW |
| Diaphragm Material | Composite Polyimide |
| Voice Coil Former | Kapton |
| Magnet Type | Neodymium N42 |
| Body Material | Aluminum |
| Sensitivity | 108 dB (1W/1m) |
Audio Specifications
| Specification | Rating |
|---|---|
| Frequency Response | 1.8 kHz – 20 kHz |
| Recommended High-Pass Crossover | 2.8 kHz |
| Recommended Crossover Slope | 12 dB/octave |
| Sensitivity | 108 dB (1W/1m) |
| Nominal Impedance | 4 Ω |
Power Handling
| Specification | Power |
|---|---|
| AES Power Handling | 90 W |
| Program Power Handling | 180 W |
| Peak Power Handling | 360 W |
Dimensions
| Measurement | Imperial | Metric |
|---|---|---|
| Overall Diameter | Approx. 3 1/8 in | 8.0 cm |
| Overall Depth | Approx. 2 1/16 in | 5.25 cm |
| Mounting Depth | Approx. 1 13/16 in | 4.68 cm |
| Cutout Diameter | Approx. 2 3/8 in | 6.03 cm |
| Body Diameter | Approx. 2 1/4 in | 5.8 cm |
