About the Product
Product Description

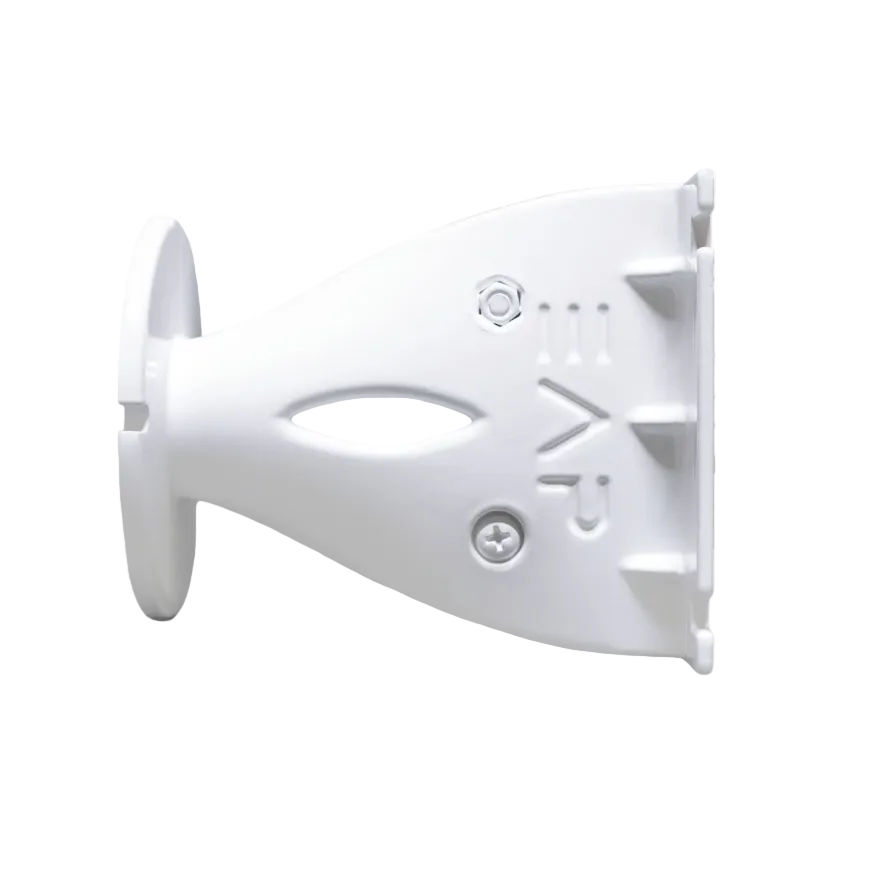

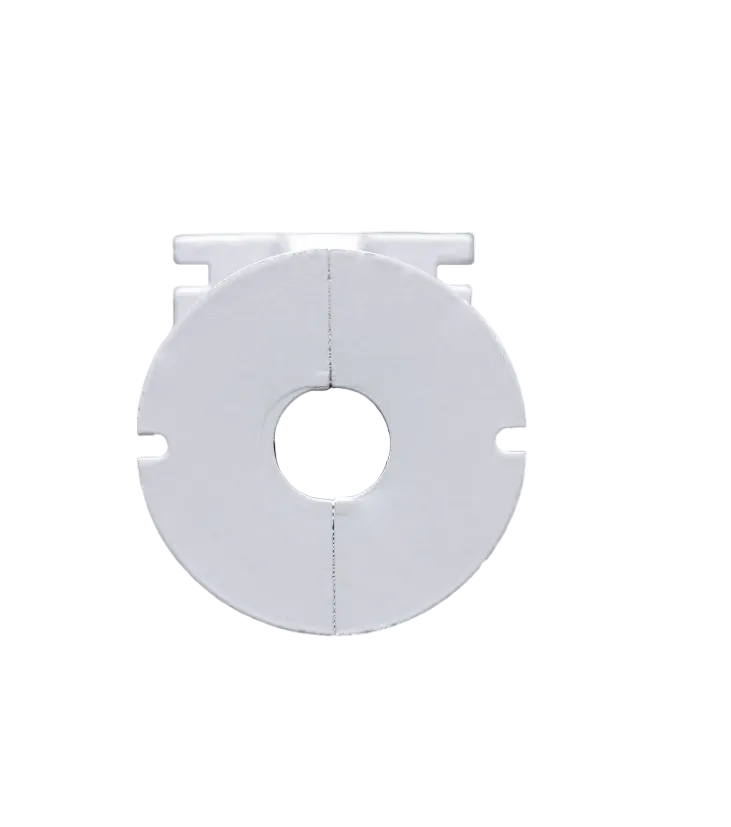

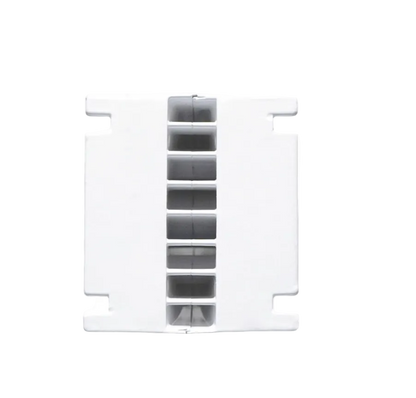

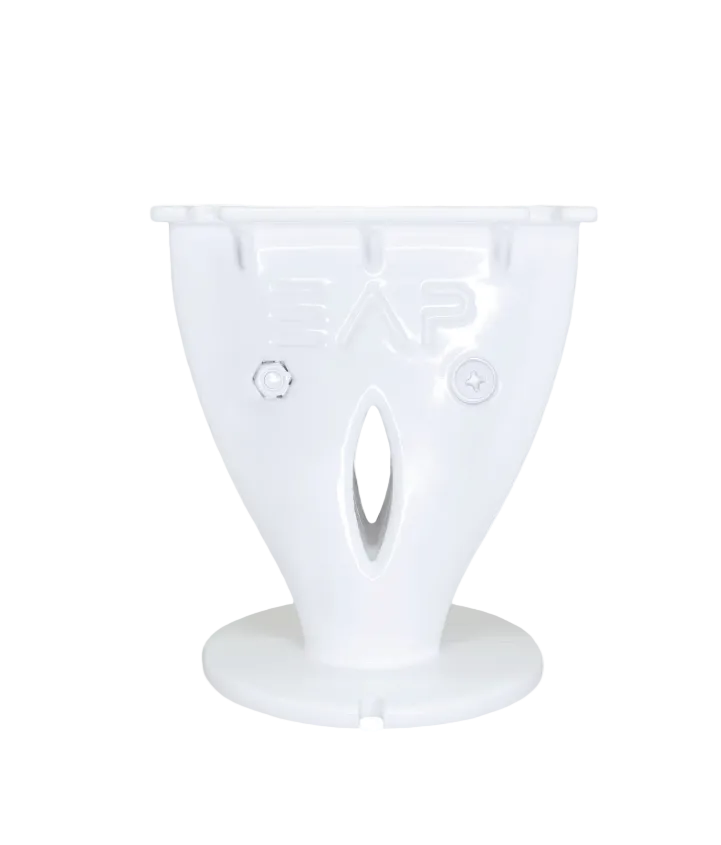

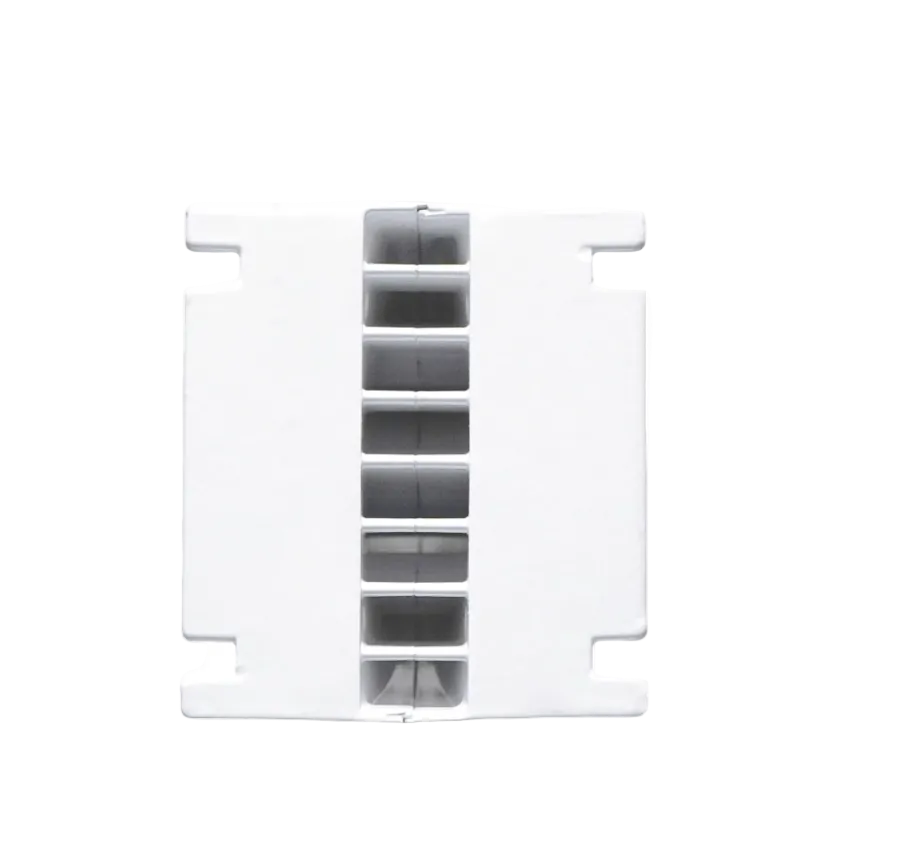

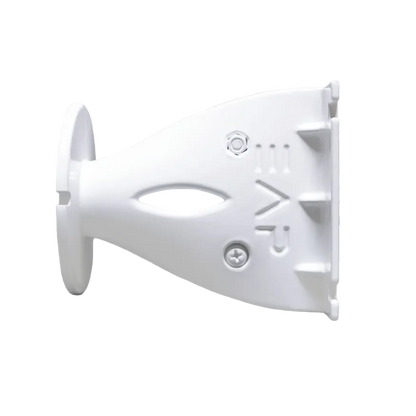

The EAP G90 is a compact high-frequency waveguide designed for professional audio applications. It features a 25 mm (1 in) throat and is engineered to minimize internal reflections and acoustic losses while reducing air distortion at the throat.
Its compact design allows for high-density array configurations while providing a wide 120° horizontal coverage and controlled 15° vertical dispersion. The G90 is optimized for use with EAP compression drivers and is compatible with other high-frequency drivers featuring a 1-inch / 25 mm flange-mount throat. Threaded drivers require a thread-to-flange adapter.
Main Features
| Feature | Specification |
|---|---|
| Product Type | High-Frequency Waveguide |
| Model | EAP G90 |
| Throat Size | 1 in / 25 mm |
| Driver Mounting | Flange Mount |
| Horizontal Coverage | 120° |
| Vertical Coverage | 15° |
| Frequency Range | 1.1 kHz – 20 kHz |
| Recommended Crossover | 1.5 kHz |
| Material | Injected Aluminum |
| Driver Compatibility | 1 in / 25 mm High-Frequency Compression Drivers |
Dimensions
| Measurement | Imperial | Metric |
|---|---|---|
| Length | Approx. 4 1/2 in | 11.43 cm |
| Width | Approx. 3 9/16 in | 9.00 cm |
| Height | Approx. 3 13/16 in | 9.72 cm |
| Complete Dimensions | 4 1/2 × 3 9/16 × 3 13/16 in | 11.43 × 9.00 × 9.72 cm |
