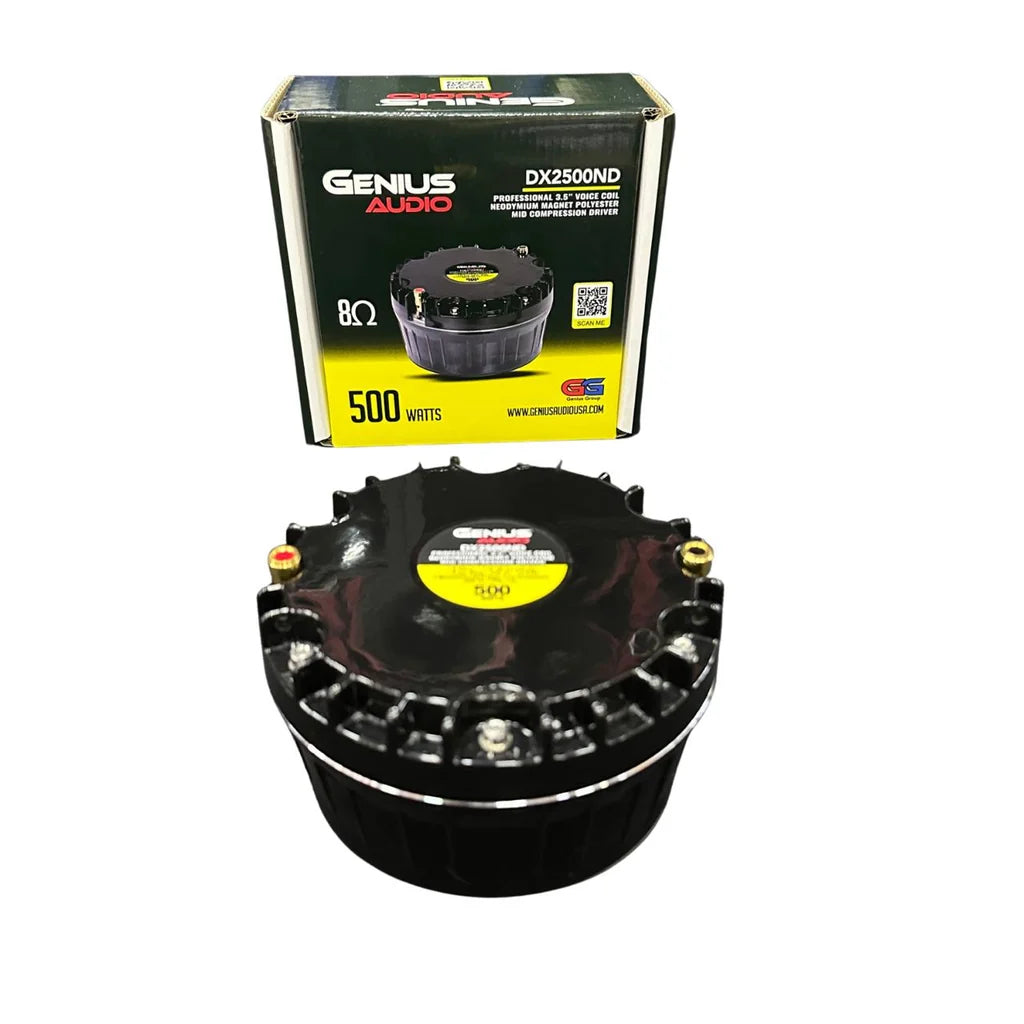

DX2500ND 3.5” VOICE COIL COMPRESSION DRIVER
$265.99 USD
$265.99 USD
Oferta
Agotado
¡Compre más y ahorre más!
¡Desbloquee ahorros exclusivos con nuestras ofertas Compre más, ahorre más!
Próximamente volveremos a abastecernos
No se pudo cargar la disponibilidad de retiro
- Mejor precio garantizado
- Ofertas
- Soporte profesional
- Envío rápido
Pago seguro con
About the Product
Product Description
The Genius Audio DX2500ND is a professional mid-frequency compression driver built for high-output car audio and pro-audio applications. It features a large 3.5-inch voice coil, a polyester diaphragm, and a powerful N45 neodymium magnet for strong output with reduced weight.
With 250 watts AES power handling, 500 watts program power, and up to 1000 watts peak power handling, the DX2500ND is designed for demanding systems that require high sensitivity and strong midrange projection. Its 118 dB sensitivity and 320 Hz to 13 kHz frequency response make it well suited for high-efficiency vocal and midrange applications.
Main Features
| Feature | Specification |
|---|---|
| Product Type | Professional Mid Compression Driver |
| Model | Genius Audio DX2500ND |
| Installation Type | Bolt-On |
| Nominal Diameter | 2 in / 50.8 mm |
| Nominal Impedance | 8 Ohms |
| Voice Coil Diameter | 3.5 in / 88.9 mm |
| Voice Coil Wire | CCAW |
| Voice Coil Former | Kapton |
| Diaphragm Material | Polyester |
| Magnet Type | Neodymium N45 |
| Body Material | Aluminum |
| Sensitivity | 118 dB (1W/1m) |
Audio Specifications
| Specification | Rating |
|---|---|
| Frequency Response | 320 Hz – 13 kHz |
| Recommended High-Pass Crossover | 350 Hz |
| Recommended Crossover Slope | 12 dB/octave |
| Sensitivity | 118 dB (1W/1m) |
| Nominal Impedance | 8 Ω |
Power Handling
| Specification | Power |
|---|---|
| AES Power Handling | 250 W |
| Program Power Handling | 500 W |
| Peak Power Handling | 1000 W |
Dimensions
| Measurement | Imperial | Metric |
|---|---|---|
| Overall Diameter | Approx. 5 1/2 in | 14.0 cm |
| Overall Depth | Approx. 3 1/4 in | 8.26 cm |
| Mounting Bolt Circle | 4 × M6 / 0.236 in |
4 × M6 |
