About the Product
Product Description

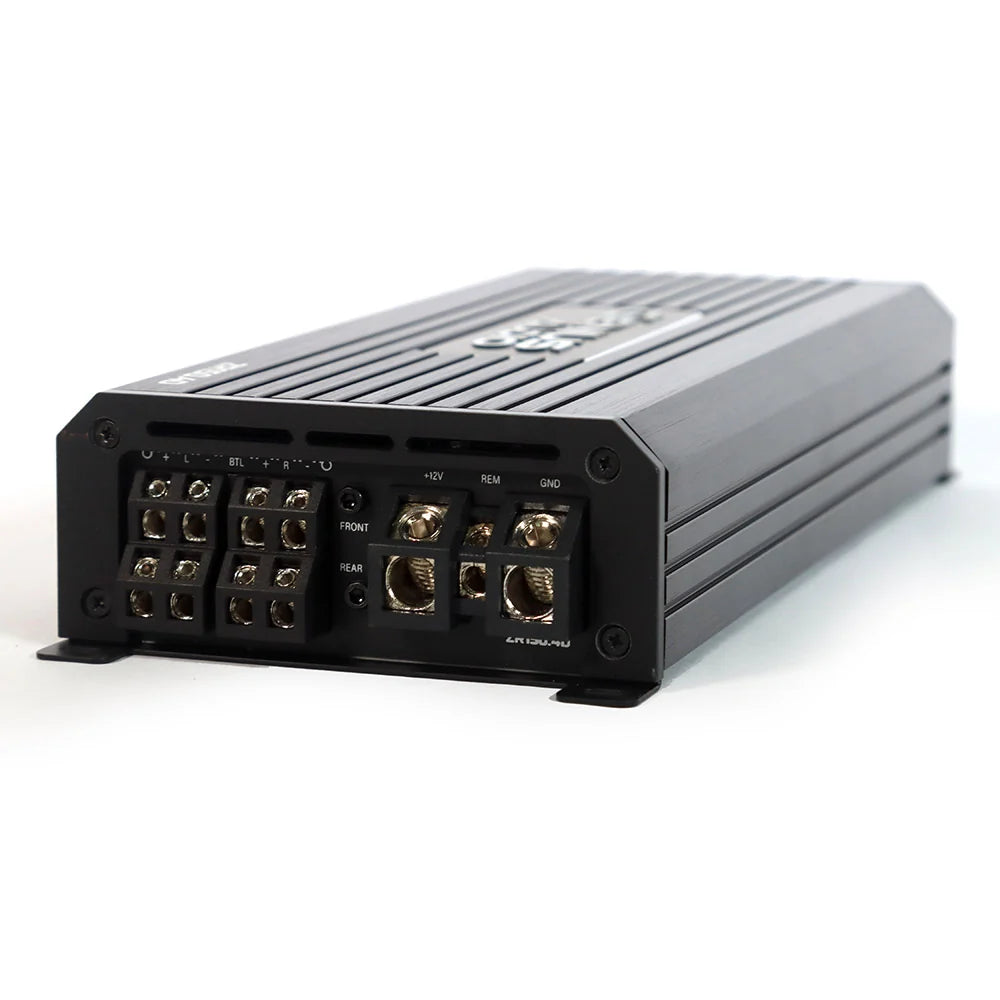

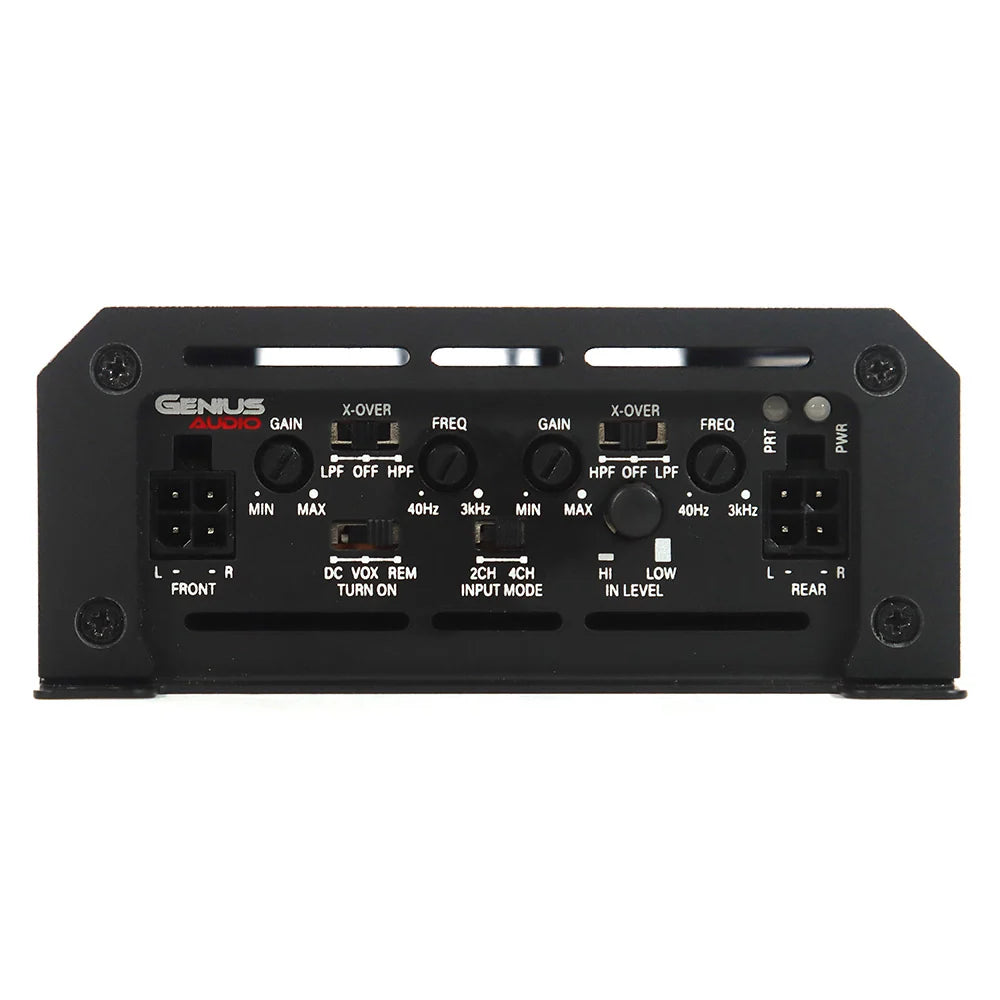

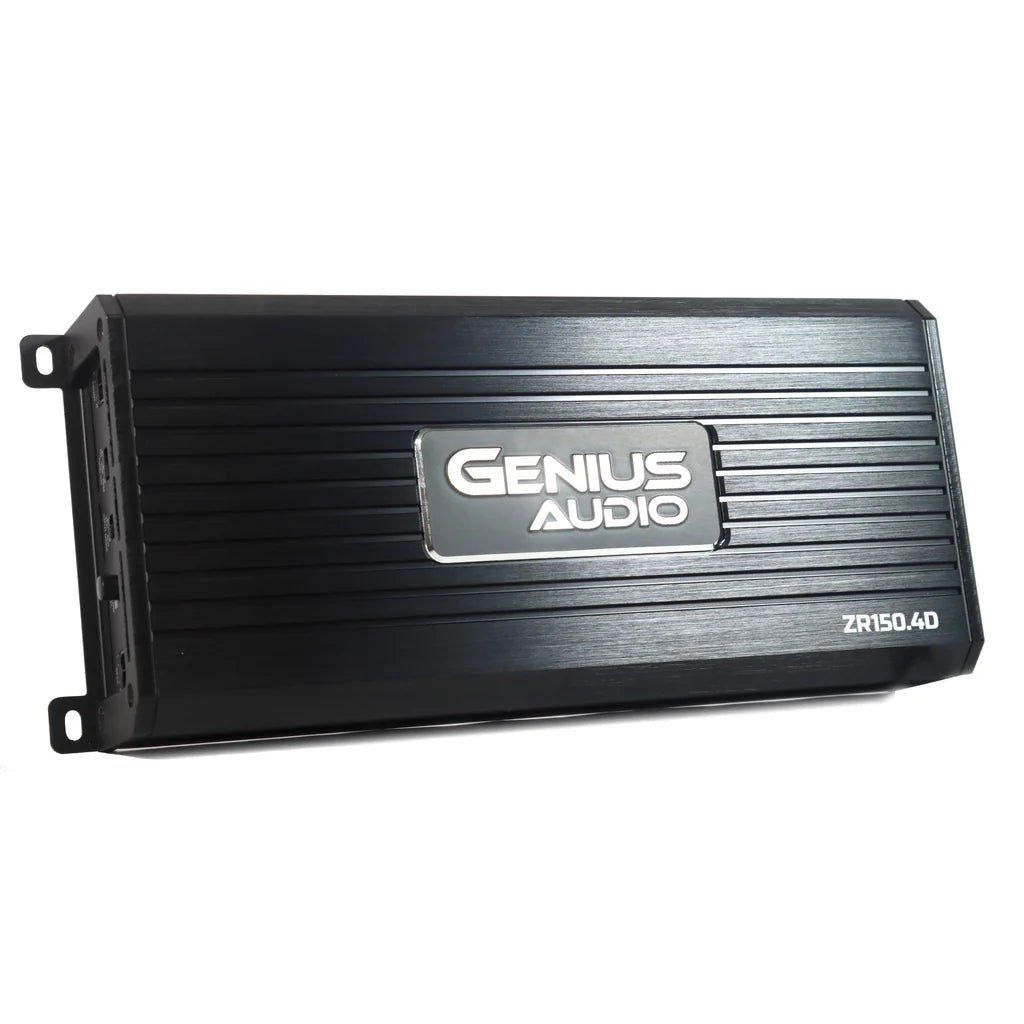

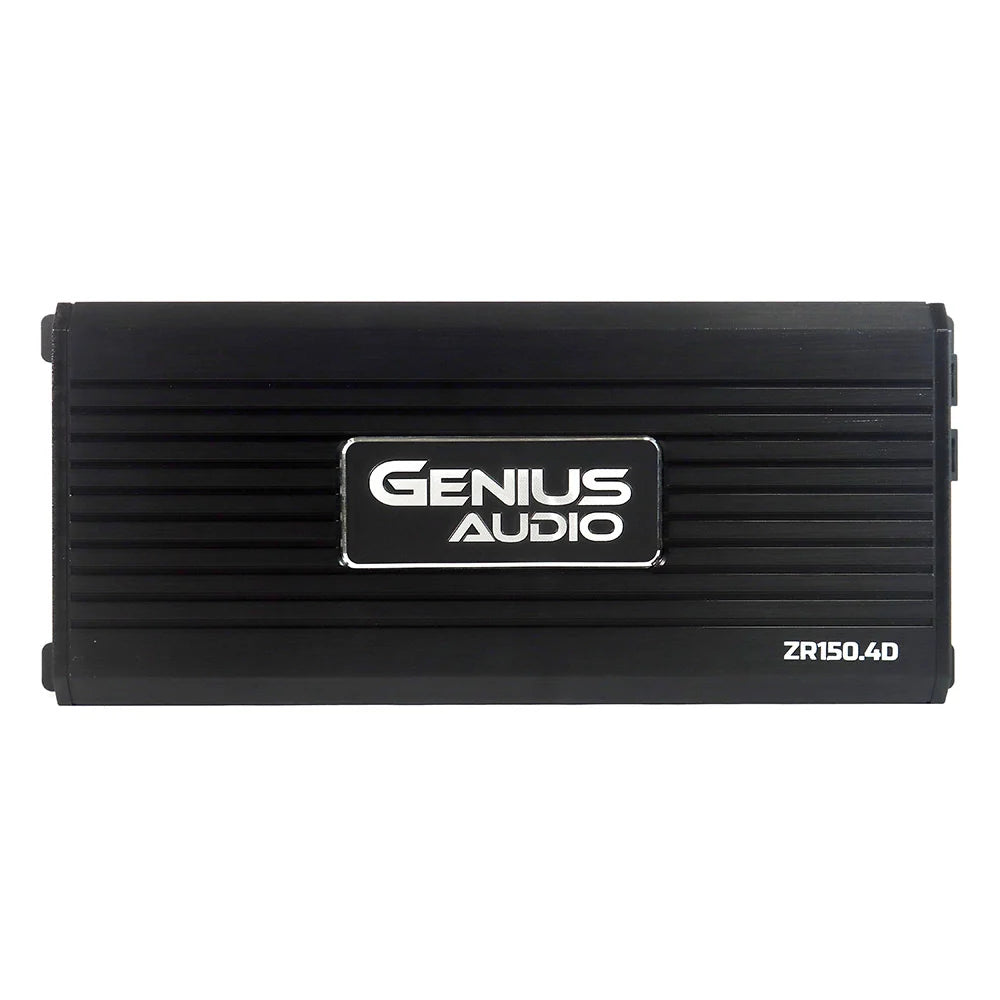

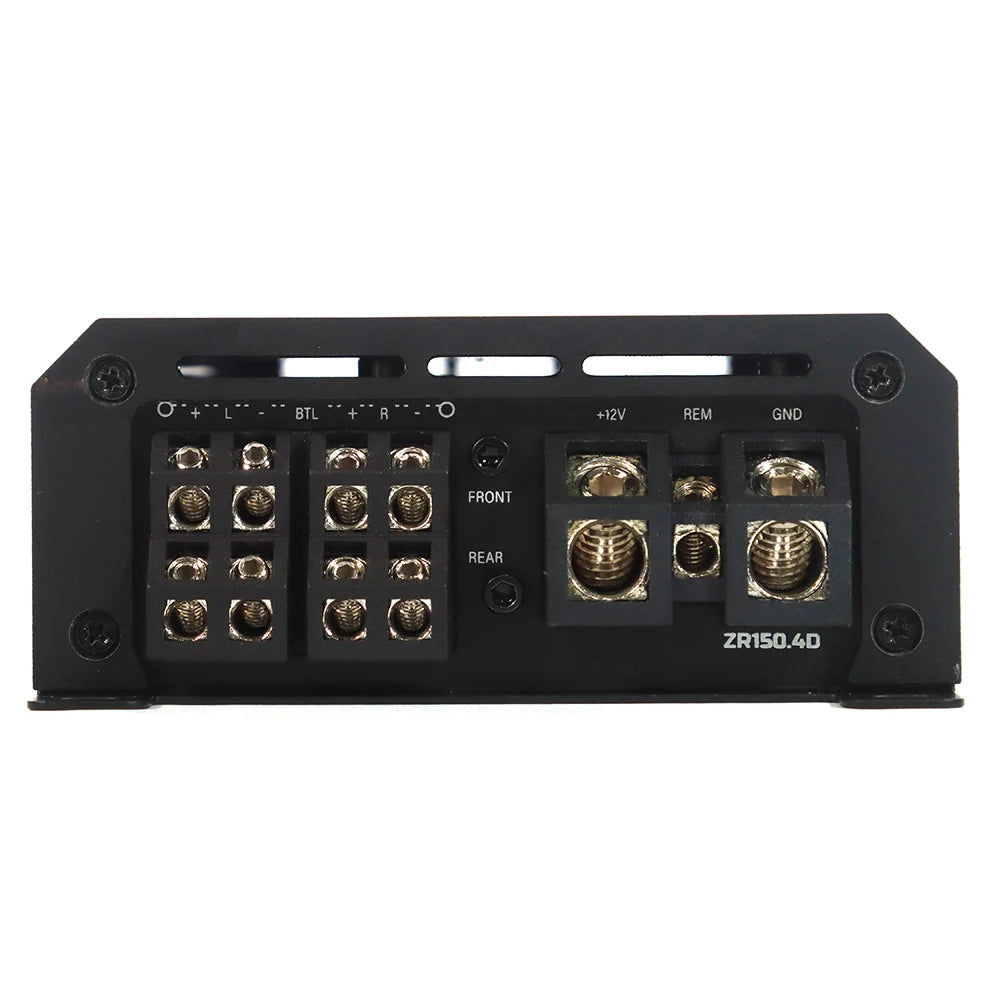

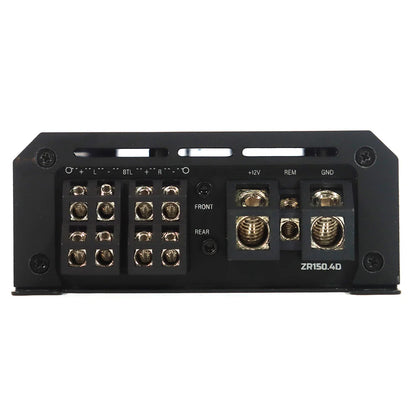

The Genius Audio ZR150.4D is a compact 4-channel Class D full-range amplifier designed for powerful and efficient car audio systems. It is stable at 2 ohms stereo and can also operate in 4-ohm bridged mode, making it a flexible choice for powering mids, highs, component speakers, or multiple speaker configurations.
The ZR150.4D delivers up to 510 watts RMS x 2 bridged at 14.4V, while its adjustable high-pass and low-pass crossover network provides tuning flexibility from 40 Hz to 3 kHz. Its heavy-duty aluminum heat sink and integrated protection circuitry help maintain reliable performance in demanding installations.
Main Features
| Feature | Specification |
|---|---|
| Product Type | 4-Channel Full-Range Amplifier |
| Model | Genius Audio ZR150.4D |
| Amplifier Class | Class D |
| Channels | 4 |
| Minimum Stereo Impedance | 2 Ohms |
| Minimum Bridged Impedance | 4 Ohms |
| Crossover Modes | LPF / HPF / FULL |
| HPF Range | 40 Hz – 3 kHz |
| LPF Range | 40 Hz – 3 kHz |
| Crossover Slope | 12 dB |
| Input Sensitivity | Low: 0.3–9.5 V / High: 1.6–27 V |
| LED Indicator | Power / Protection |
| Heat Sink | Heavy-Duty Aluminum |
| Finish | Black Aluminum |
Power Output
Power @ 14.4V
| Configuration | RMS Power |
|---|---|
| 4 Channels @ 4 Ohms Stereo | 165 W x 4 |
| 4 Channels @ 2 Ohms Stereo | 265 W x 4 |
| 2 Channels @ 4 Ohms Bridged | 510 W x 2 |
| 4 Channels @ 2 Ohms Stereo — Burst | 305 W x 4 |
Electrical Specifications
| Specification | Rating |
|---|---|
| Minimum Supply Voltage | 8 V |
| Maximum Supply Voltage | 16 V |
| Idle Current @ 12.6V | 0.8 A |
| Maximum Musical Consumption @ 12.6V | 45 A |
| Maximum Sinusoidal Consumption @ 12.6V | 90 A |
| Recommended Fuse | 60 A |
| Recommended Minimum Battery | 70 Ah |
Dimensions
| Measurement | Imperial | Metric |
|---|---|---|
| Length | Approx. 10 1/4 in | 26.0 cm |
| Width | 4 1/4 in | 10.8 cm |
| Height | Approx. 1 3/4 in | 4.5 cm |
| Complete Dimensions | 10 1/4 × 4 1/4 × 1 3/4 in | 26.0 × 10.8 × 4.5 cm |
